Equipment/Specification Summary

Date started:
October 2003 and was an upgrade from a 2001 started 500gal tank

Live rock:
1200lbs of Fiji, Tonga, and Marshall

Lights:
(12) 400 watt MH bulbs (10K ushio, MH 14K Aqua Connect, MH 20K Radium)
(12) Reef Optix reflectors

(6) 165 watt VHO actinic on Ice Cap ballasts
(3) dual HQI Sunlight Supply ballasts
(3) dual Pulse Start Sunlight Supply ballasts
(12) 4” cooling fans

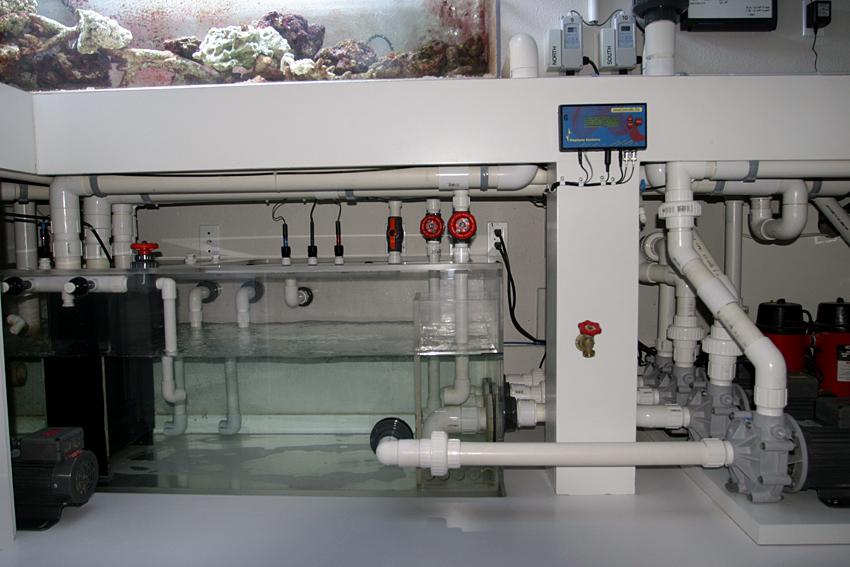

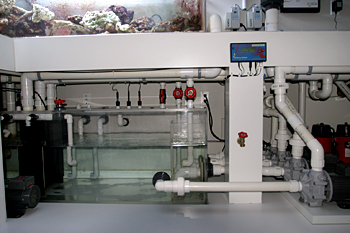

Sump:
150 gals

Pumps:
(4) Sequence23 6000 pumps for the closed loop
(5) Sequence 20 4300 pumps for sump returns, skimmers, and reactors

Calcium reactor:
Deltec PF1000

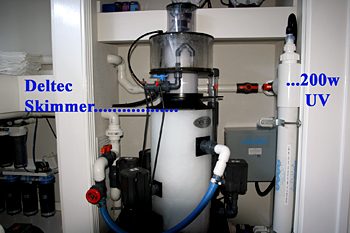

Skimmer:
Deltec Ap 1004 with self cleaning capabilities

Kalk reactor:
Deltec KM 800 with CaO media

Phosphate reactor:
Deltec FR 1020 with Rowaphos media

UV Sterilizer :
Aqua 200watt single bulb UV sterilizer

Refugium:
125 gallons with 6X36watt 36" T-5 Teklite

Heaters:
(2) Aquadyne 1000 watt fire plugs

Chillers:
(2) Aqualogic 1 3/4hp

RO-DI unit:
SpectraPure 4 stage unit that produces 100 gal/day

Dosing pump:
SpectraPure litermeter 3

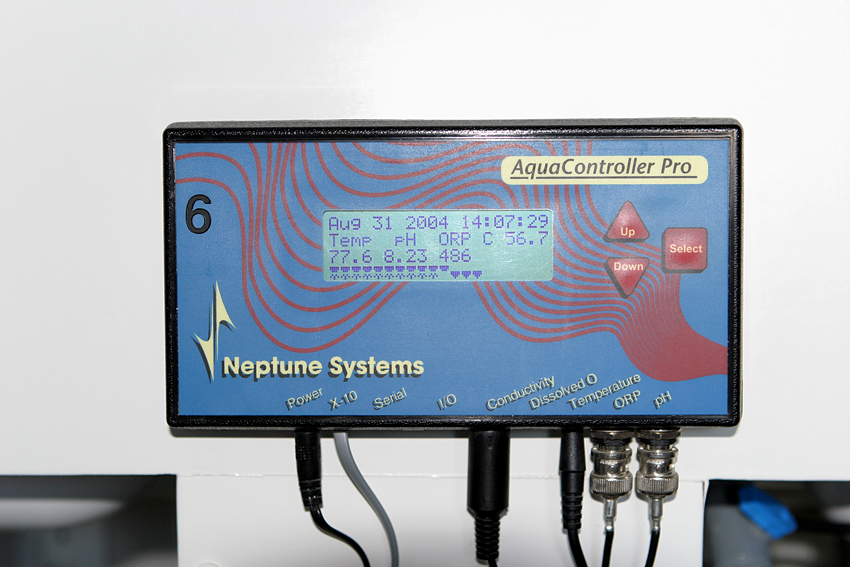

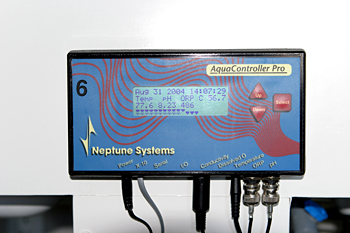

Controller:
Neptune Aquacontroller Pro
